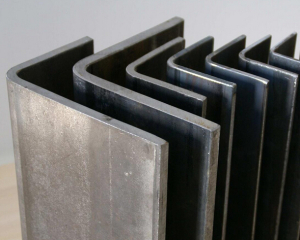

Mild Steel Angle offered comprises equal angle steel & unequal angle steel that can be made available in hot rolled/cold-bend finish options. Further, these can be provided with different surface treatment like hot dip galvanized or cold dip galvanized finish. Some of its features include suitable for use in communication tower, highway, as construction steel structure component and other areas; available in length options of 6m to 12m as required; can be made available in special designs according to requirement, coming in superior anti-corrosion and high-temperature resistant finish options to pick from.
We are the leading Supplier of MS Angle. To fulfill the specific requirements of our clients, we offer these in various dimensions and thickness. The quality controllers of our organization also check the products just before the final delivery to the customers. They are delivered to clients within the stipulated time-frame in efficient packaging.
Specification
Size |
Weight in Kgs. |
Gauge |
in mm |
Per Feet |
Per Mtr. |
20x20x3 |
0.274 |
0.899 |
25x25x3 |
0.335 |
1.099 |
25x25x5 |
0.548 |
1.798 |
31x31x3 |
0.390 |
1.280 |
35x35x5 |
0.792 |
2.599 |
37x37x3 |
0.518 |
1.700 |
40x40x3 |
0.548 |
1.798 |
40x40x5 |
0.915 |
3.002 |
40x40x6 |
1.066 |
3.498 |
50x50x5 |
1.158 |
3.799 |
50x50x6 |
1.372 |
4.502 |
60x60x6 |
1.645 |
5.397 |
65x65x6 |
1.767 |
5.798 |
65x65x8 |
2.346 |
7.697 |
65x65x10 |
2.864 |
9.397 |
75x75x6 |
2.072 |
6.798 |
75x75x8 |
2.712 |
8.898 |
75x75x10 |
3.352 |
10.998 |
80x80x6 |
2.224 |
7.297 |
80x80x8 |
2.925 |
9.597 |
90x90x6 |
2.499 |
8.199 |
90x90x8 |
3.292 |
10.801 |
90x90x10 |
4.084 |
13.400 |
100x100x6 |
2.804 |
9.200 |
100x100x8 |
3.687 |
12.097 |
100x100x10 |
4.545 |
14.912 |
100x100x12 |
5.395 |
17.701 |
110x110x12 |
5.028 |
16.497 |
130x130x10 |
6.004 |
19.699 |
150x150x10 |
6.950 |
22.803 |
150x150x12 |
8.290 |
27.199 |
150x150x16 |
10.911 |
35.799 |
150x150x20 |
13.441 |
44.100 |
