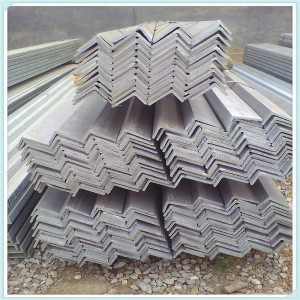

Mild Steel Unequal Angle

<< Previous

Send Inquiry

Product Code : VSC/MSA/002

Price And Quantity

Minimum Order Quantity
2
Unit of Measure
Metric Ton/Metric Tons

Product Specifications

Product Type
Steel
Shape
Rod

Product Description

MS Angles are L-shaped structural steel represented by dimension of sides & thickness.For e.g. 50x50x6 means, both the sides of angles are 50mm & thickness is of 6mm.There are various sizes of angles which are as follows :-( there are also equal & unequal angles)

SIZES & SECTION WEIGHT OF UNEQUAL ANGLES

Size	Weight in Kg
in mm	per meter
30x20x3	1.1
30x20x4	1.4
30x20x5	1.8

40x25x3	1.5
40x25x4	1.9
40x25x5	2.4
40x25x6	2.8

45x30x3	1.7
45x30x4	2.2
45x30x5	2.8
45x30x6	3.3

50x30x3	1.8
50x30x4	2.4
50x30x5	3
50x30x6	3.5

60x40x5	3.7
60x40x6	4.4
60x40x8	5.8

65x45x5	4.1
65x45x6	4.9
65x45x8	6.4

70x45x5	4.3
70x45x6	5.2
70x45x6	6.7
70x45x6	8.3

75x50x5	4.7
75x50x6	5.6
75x50x6	7.4
75x50x10	9

80x50x5	4.9
80x50x6	5.9
80x50x8	7.7
80x50x10	9.4

90x60x6	6.8
90x60x8	8.9
90x60x10	11
90x60x12	13

100x65x6	7.5
100x65x8	9.9
100x65x10	12.2

100x75x6	8
100x75x8	10.5
100x75x10	13
100x75x12	15.4

125x75x6	9.2
125x75x8	12.1
125x75x10	14.9

125x95x6	10.1
125x95x8	13.3
125x95x10	16.5
125x95x12	19.6

150x75x8	13.7
150x75x10	16.9
150x75x12	20.1

150x115x8	16.2
150x115x10	20
150x115x12	23.5
150x115x15	29.5

200x100x10	22.8
200x100x12	27.2
200x100x15	33.6
200x150x10	16.7

200x150x12	31.8
200x150x15	39.4
200x150x18	46.9
200x150x12	31.8
200x150x15	39.4
200x150x18	46.9
